Gas Inflation Systems
Thanner gas inflation system represent the latest design and technology of its field, where size, weight and reliable function are the main factors behind all development. The components can form a complete package of valves and hoses for any size of raft or construction.
Operating head & cylinder valve
The Thanner range of operating heads are very compact, light and suitable for release of CO2, nitrogen and compressed air at cylinder pressure up to 300bar.
The manual operated release mechanism is depending on of a stored spring force, which activates a penetration knife that penetrates a diaphragm to release the content of a cylinder. Operating heads for remote release by means of mechanical force, gas pressure or electric power, are available.
Operating heads are available with one or two outlets, standard thread is 3/8″ BSP. Alternative threads are available on request.
There are operating heads for SOLAS equipment and for Leisure equipment.
Operating heads for disposable cylinders, are available.
Operating heads for hydrostatic release, are available.

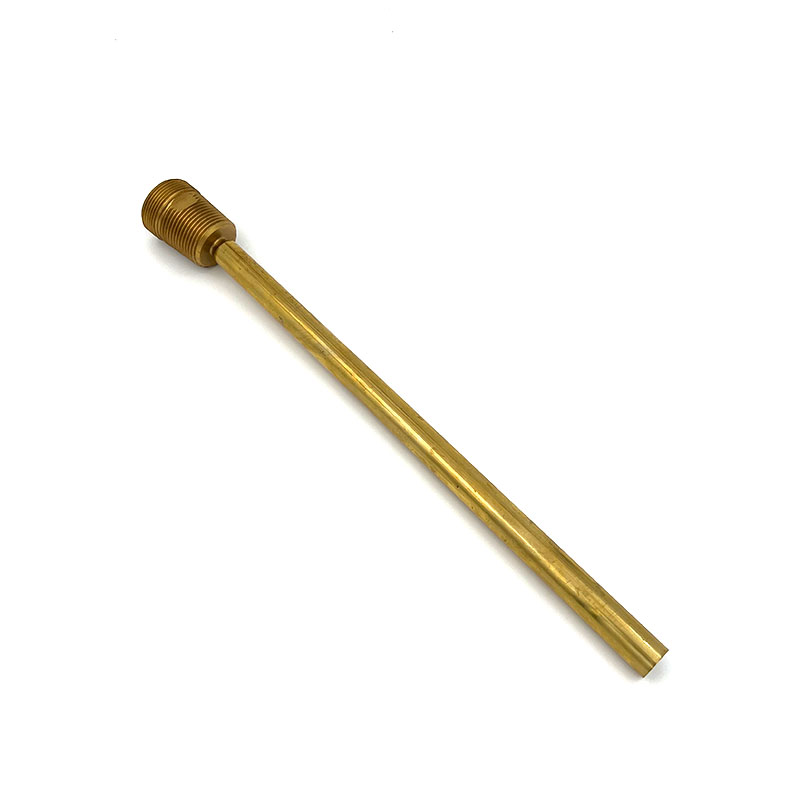

Cylinder valves are available with different threads to suit most types of cylinders and they are available with permanent charge connection, pressure gauge or pressure switch for remote control of gas pressure and with safety relief to the atmosphere. Syphon tubes of different lengths, to ensure safe gas flow are available. Cylinder valves of aluminium are available for low weight applications.

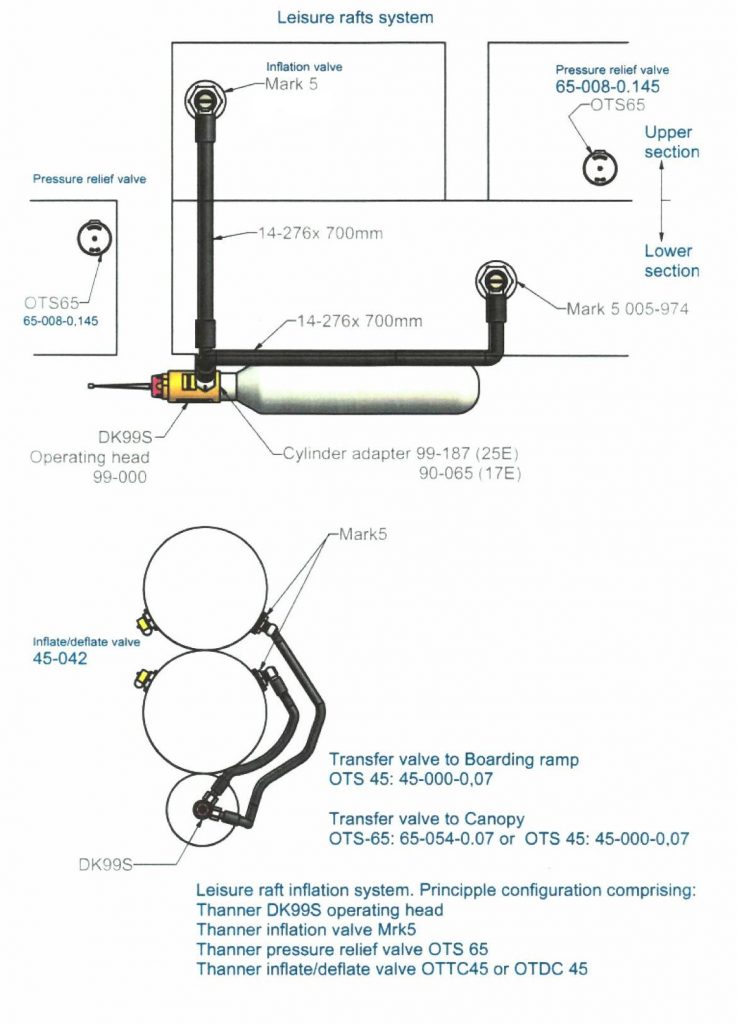

Leisure Rafts System
Thanner inflation systems for leisure rafts. The cylinder assembly comprise the cylinder adapter with penetration diaphragm and siphon tube for CO2 gas and the operating head DK99.
All made from brass and available with or without nickel plating. The cylinder adapter is avaiable with a primary safety disc, venting to the atmosphire. The DK99 is available with one or two outlets to match the actual inflation system.
Further more versions with vacuum clamping facilities are available. The system is approved to ISO 15738 to handle CO2, N2 and compressed air up to 300 bar. To release the DK99 a pull of app. 100 N is required in directions 360° round and 0-90° in line.
The DK99 can be connected
to the inflation valves either via high pressure hoses or to a manifold of inflation valves.
Approval: FDC-Thanner-ISO 15738-009
Solas rafts system
Systems can meet the requirements of SOLAS and MED regulations as well as the rules of FAA.
The system for SOLAS equipment are suitable for marine environment and approved as such. Lighter components are available for leisure and aviation rafts systems.
Systems are available for vacuum packing of rafts and can handle gas as CO2, Nitrogen and compressed air with pressures up to 300 bar.
For large constructions the Thanner patented internal distribution system, IDS system, is second to none in relation to design and efficiency.
Part numbers
Operating head DK99
Thanner inflation systems for leisure rafts. The cylinder assembly comprise the cylinder adapter with penetration diaphragm and siphon tube for CO2 gas and the operating head DK99. All made from brass and available with or without nickel plating. The cylinder adapter is avaiable with a primary safety disc, venting to the atmosphire. The DK99 is available with one or two outlets to match the actual inflation system. Further more versions with vacuum clamping facilities are available. The system is approved to ISO 15738 to handle CO2, N2 and compressed air up to 300 bar. To release the DK99 a pull of app. 100 N is required in directions 360° round and 0-90° in line. The DK99 can be connected
to the inflation valves either via high pressure hoses or to a manifold of inflation valves.
Approval: FDC-Thanner-ISO 15738-009

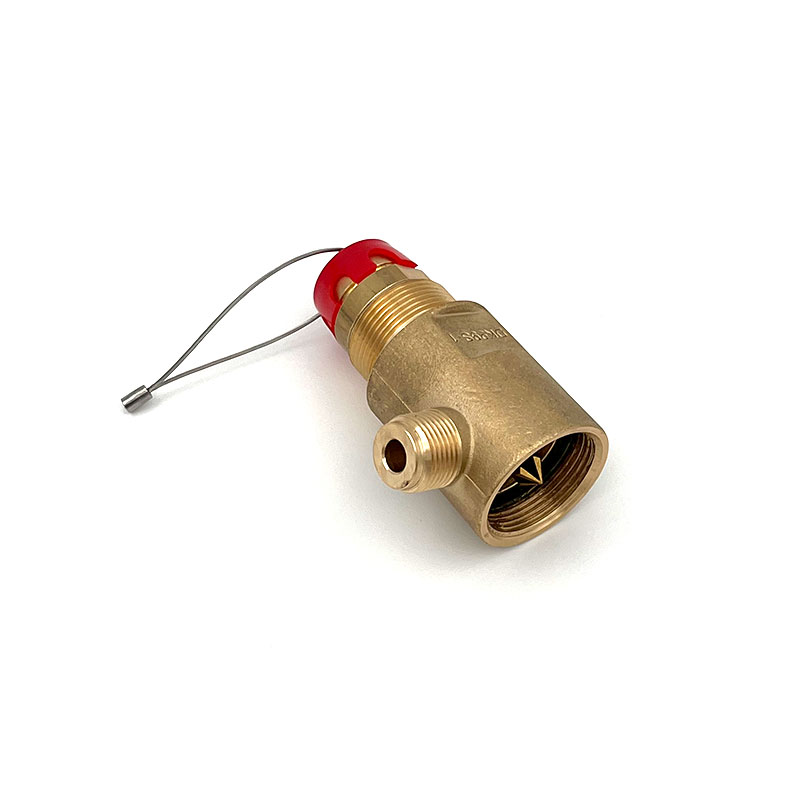

99-021

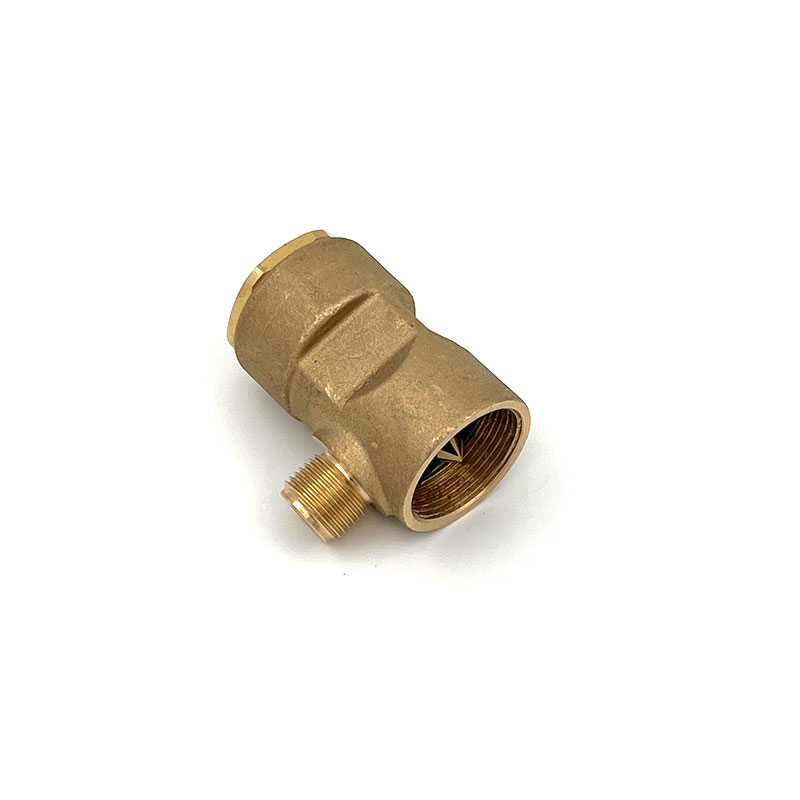

Cylinder adapter DK99S
The new ISO/TPED approved cylinder adapter DK99S is made from brass and holds the standard Thanner membrane holders also used in the DK94/ Compact series. This cylinder adapter can also be used for DK94. Membrane holders suitable for cylinder chargings up to 300bar available from stock.
Approvals: FDC-Thanner-ISO 15738-010 rev 06 / TPED number: 0200 -TPED – 04902
For the design Thanner A/S has used the standard DS/EN 17871.
Examinations have been carried out as stated below, and the results have been found to meet the relevant requirements of the TPED and ADR2017.
005-849
65-008

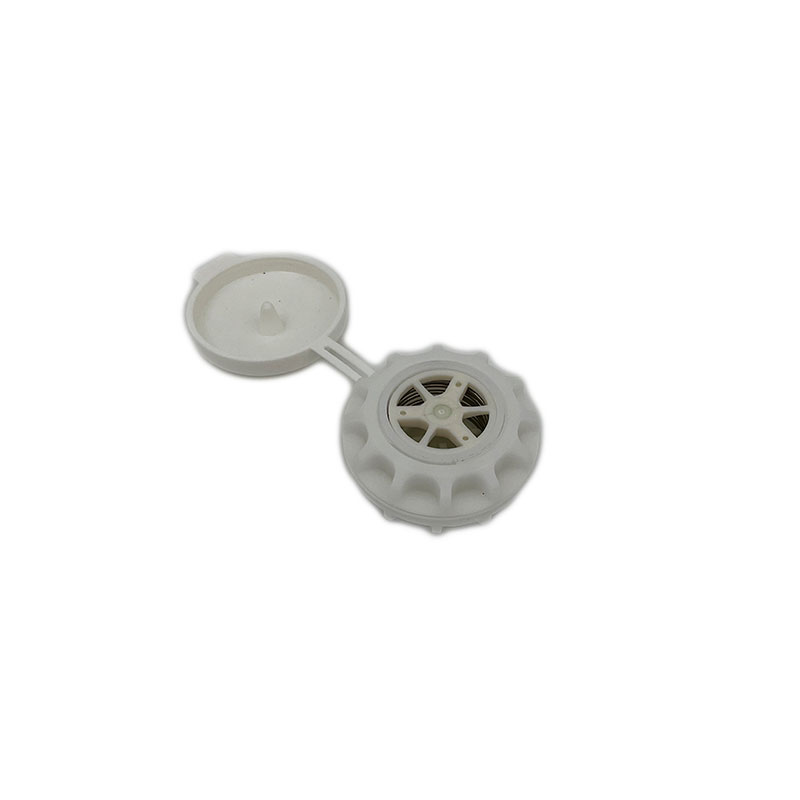

65-068

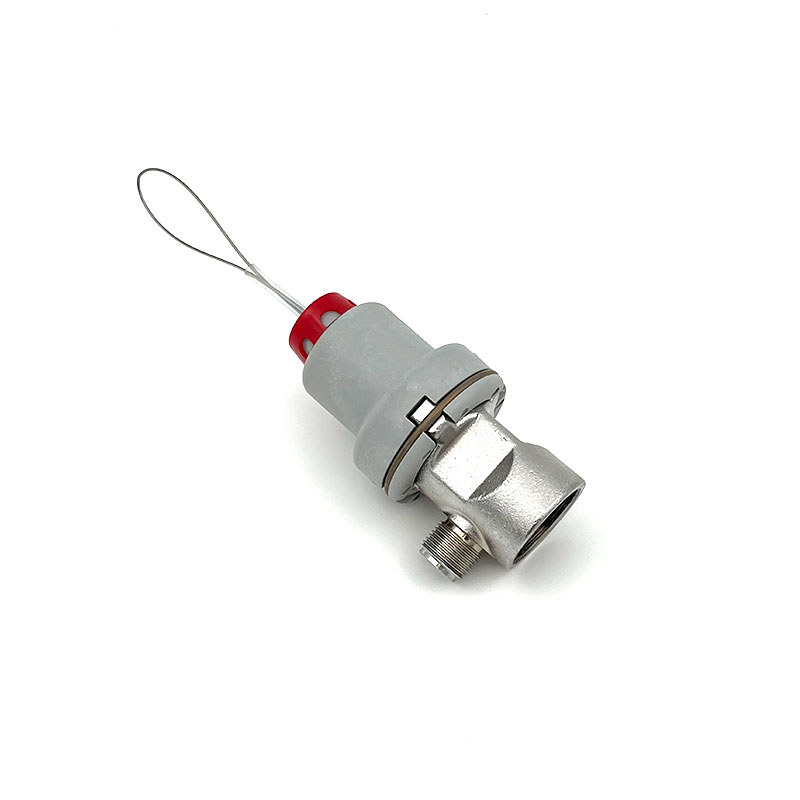

90-027
OTS-45-010
14-291
90-091
Operating head DK99
Thanner inflation systems for SOLAS rafts. The cylinder assembly comprise the cylinder adapter with penetration diaphragm and siphon tube for CO2 gas and the operating head DK99. All made from brass and available with or without nickel plating. The cylinder adapter is avaiable with a primary safety disc, venting to the atmosphire. The DK99 is available with one or two outlets to match the actual inflation system. Further more versions with vacuum clamping facilities are available. The system is approved to ISO 15738 to handle CO2, N2 and compressed air up to 300 bar. To release the DK99 a pull of app. 100 N is required in directions 360° round and 0-90° in line. The DK99 can be connected
to the inflation valves either via high pressure hoses or to a manifold of inflation valves.
Approval: FDC-Thanner-ISO 15738-009
99-021
Cylinder adapter DK99S
The new ISO/TPED approved cylinder adapter DK99S is made from brass and holds the standard Thanner membrane holders also used in the DK94/ Compact series. This cylinder adapter can also be used for DK94. Membrane holders suitable for cylinder chargings up to 300bar available from stock.
Approvals: FDC-Thanner-ISO 15738-010 rev 06 / TPED number: 0200 -TPED – 04902
For the design Thanner A/S has used the standard DS/EN 17871.
Examinations have been carried out as stated below, and the results have been found to meet the relevant requirements of the TPED and ADR2017.
90-243
90-091
14-291
90-027
65-008
005-223
OTS-45-010
65-068
65-008
90-029

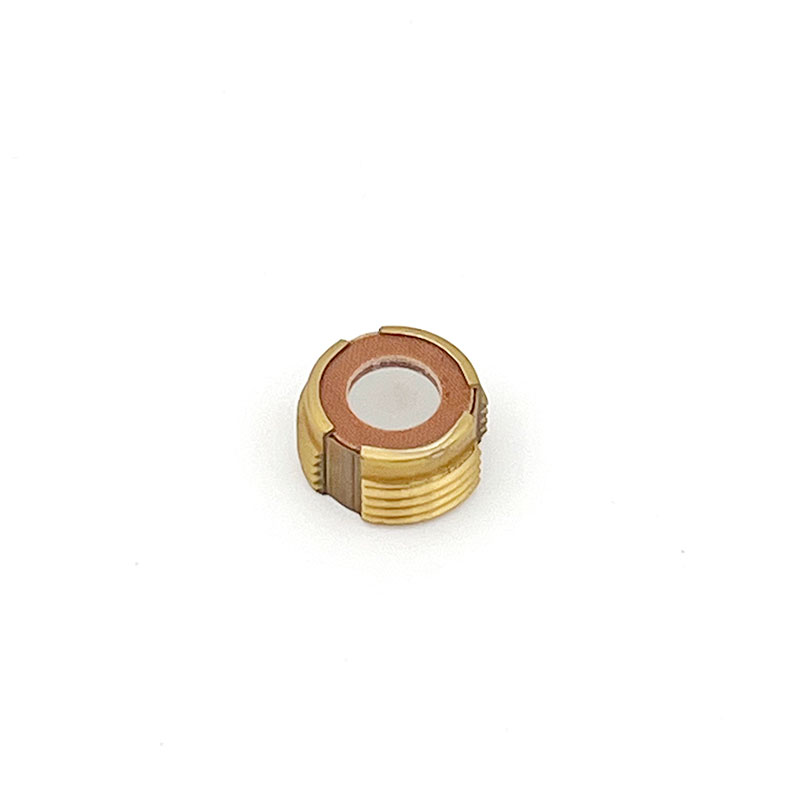

005-719

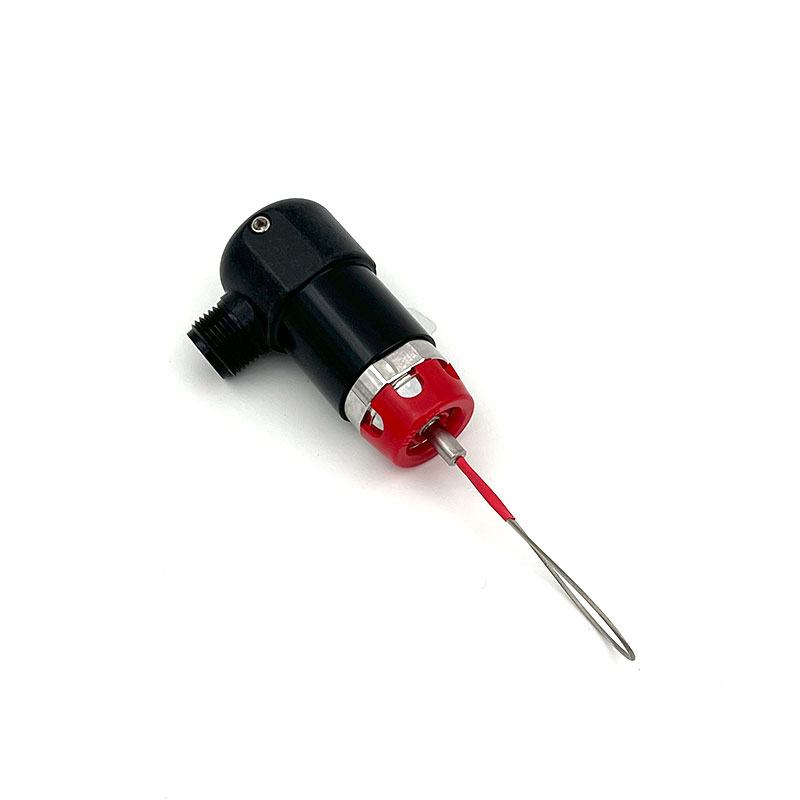

72-070

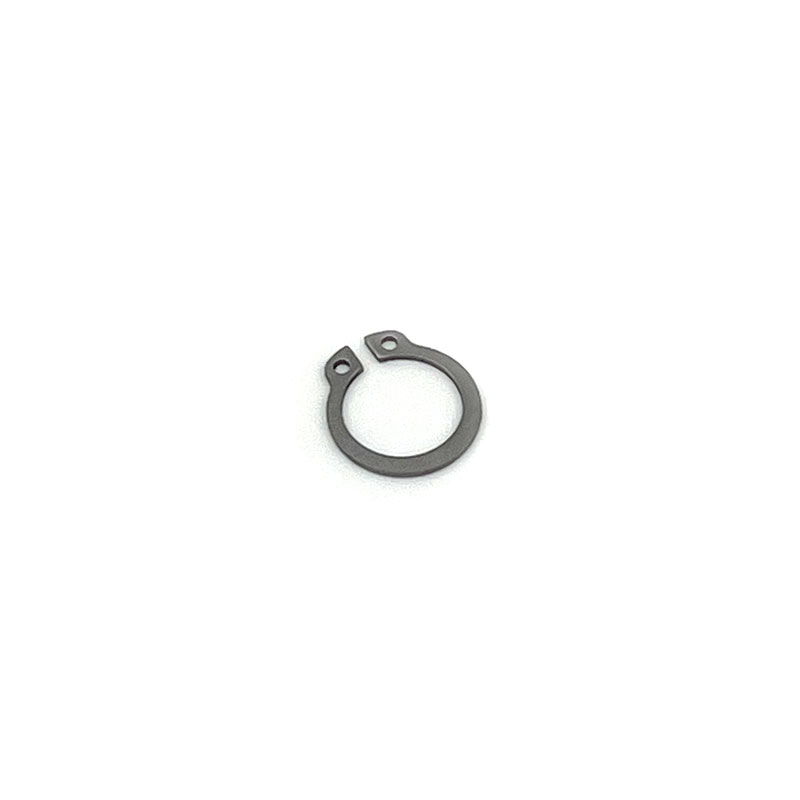

Circlip U14
005-700

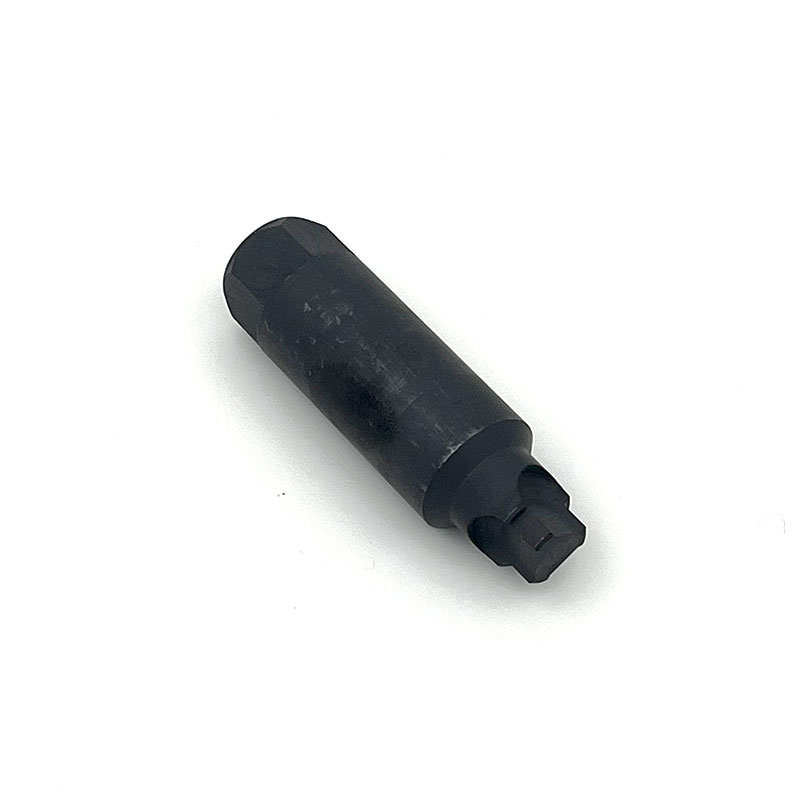

005-657
005-661
Certifcates & Instructions
Gas Inflation Systems:
- Operating head DK99 & DK99S Certificate ISO 15738
- Gas-cylinder valve CV DK99 / DK99S Certificates ISO 15738 and TPED/ADR2017:
- Inflation valve Mark III Certificate ISO 15738-003A rev1
- Inflation valve Mark 5 Certificate ISO 15738-005
- Pressure relief valve OTS-45 Certificate ISO 15738
- Topping up valve clamping OTTC-45 Certificate ISO 15738

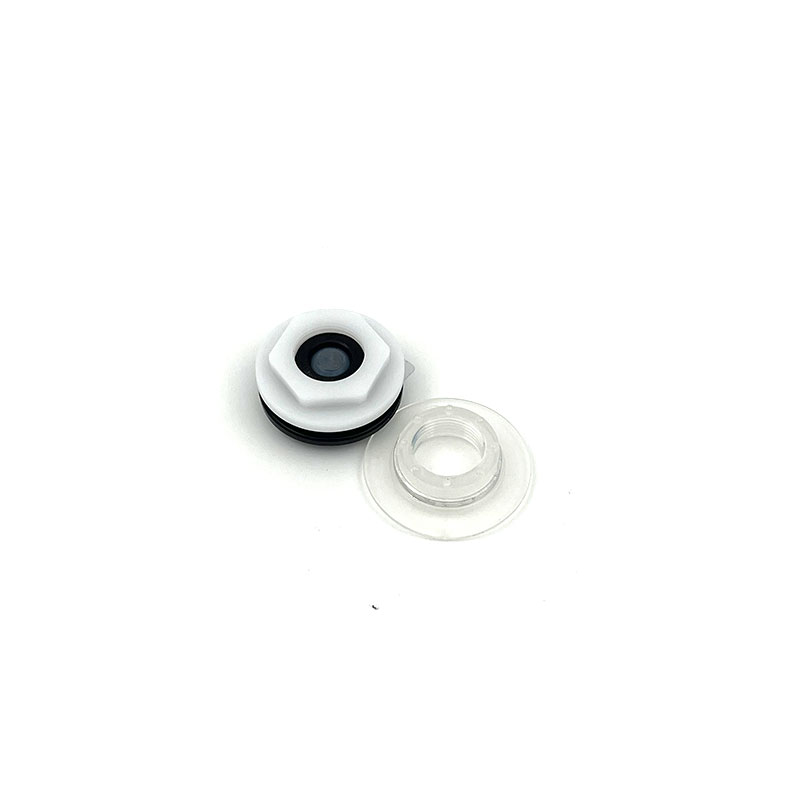

- Pressure relief valve OTS-65 Certificate ISO 15738
- Marine Hoses FDC_THANNE_ISO 15738_001
Versatility to meet custom requirements
Systems can meet the requirements of SOLAS and MED regulations as well as the rules of FAA.
The system for SOLAS equipment are suitable for marine environment and approved as such. Lighter components are available for leisure and aviation rafts systems.
Systems are available for vacuum packing of rafts and can handle gas as CO2, Nitrogen and compressed air with pressures up to 300 bar.
For large constructions the Thanner patented internal distribution system, IDS system, is second to none in relation to design and efficiency.
